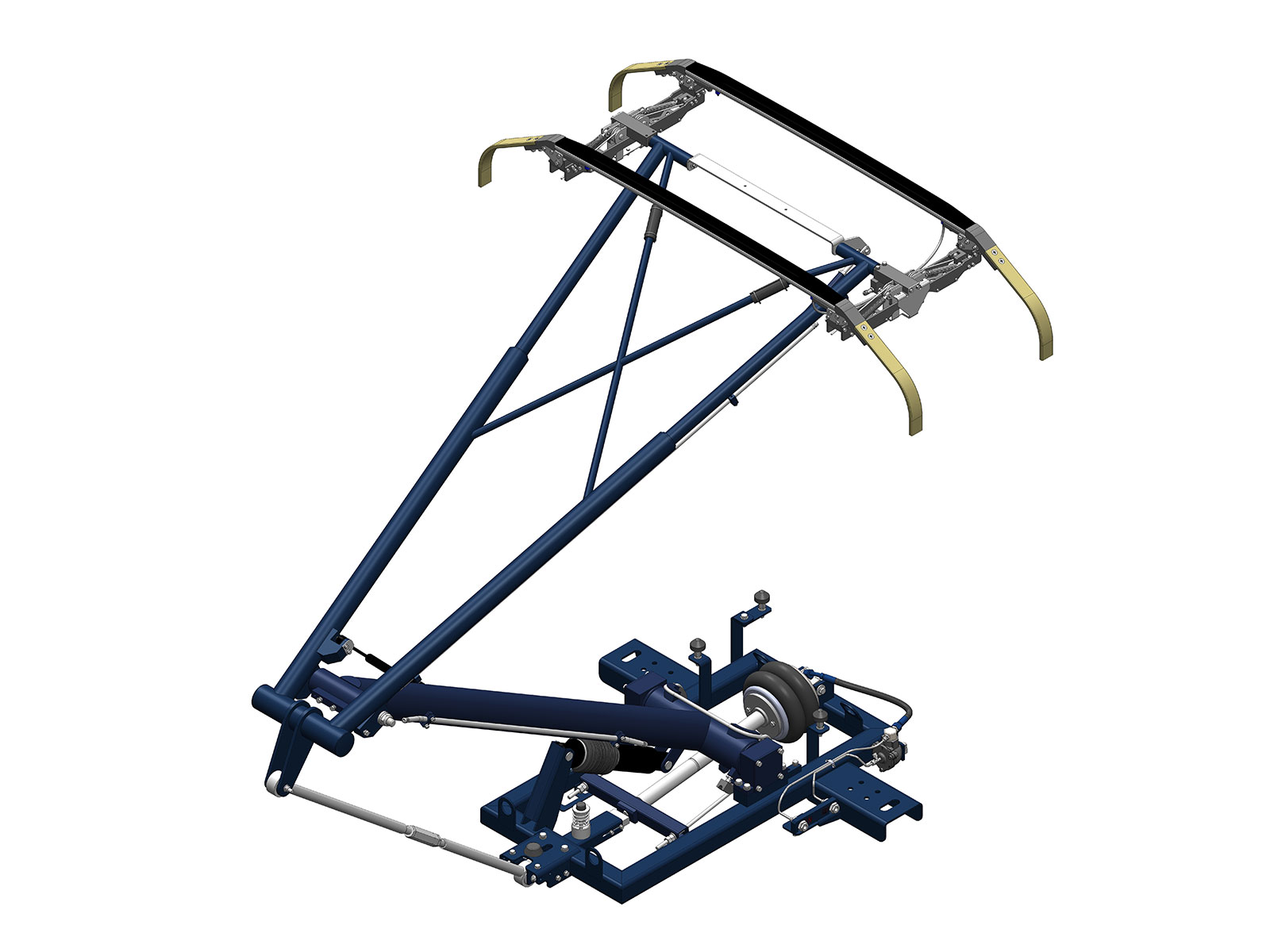

Railway Pantographs

Minel’s railway pantographs are engineered to deliver exceptional contact stability, enabling superior efficiency and reliability in both passenger and freight operations. Designed for the most demanding environments, they maintain flawless electrical contact even at speeds reaching 160 km/h, ensuring safe and efficient power transfer.

Each pantograph reflects Minel’s extensive R&D expertise, precise mechanical design, and rigorous testing protocols.

Operating on 25 kVAC and 3 kVDC systems with rated currents up to 2500 A, they combine robust mechanical design with a lightweight approx. 134 kg structure, ensuring smooth performance in demanding environments.
Their 2250 mm working range and pneumatic actuator provide precise and controlled movement, while the 70 N+- 10 N adjustable contact force optimizes stability and minimizes wear.
With integrated ADD and ORD safety features and dependable operation from -25°C to +45°C, Minel pantographs deliver consistent high-quality performance across diverse railway conditions.

Our solutions are built to meet the highest international standards in railway transportation, providing long-term durability, optimized performance, and seamless integration with existing rolling stock.
